Motherboard Gigabyte A520M-K V2 sAM4

Descripción

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors​
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs​
• PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support​
• GbE LAN with Bandwidth Management​
• 8-Channel HD Audio with High Quality Audio Capacitors​
• Rear HDMI and D-sub for Multi-display Support
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​
• GIGABYTE APP Center, Simple and Easy Use

• Procesador
• 1. AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors

  (Please refer "CPU Support List" for more information.)
• Chipset
• 1. AMD A520

• Memoria
• 1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  2. Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)

• Gráficos Integrados
• Integrated Graphics Processor:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

  Maximum shared memory of 16 GB

• Audio
• 1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN
• 1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)

• Puertos de Expansión
• CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

  Chipset:

  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Interfaz de Almacenamiento
• CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)

  Chipset:

  1. 4 x SATA 6Gb/s connectors

  Support for RAID 0, RAID 1, and RAID 10

• USB
• CPU:

  1. 4 x USB 3.2 Gen 1 ports on the back panel

  Chipset:

  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

• Conectores Internos de E/S
• 1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x M.2 Socket 3 connector
  6. 4 x SATA 6Gb/s connectors
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.2 Gen 1 header
  10. 2 x USB 2.0/1.1 headers
  11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  12. 1 x speaker header
  13. 1 x Clear CMOS jumper
  14. 1 x chassis intrusion header

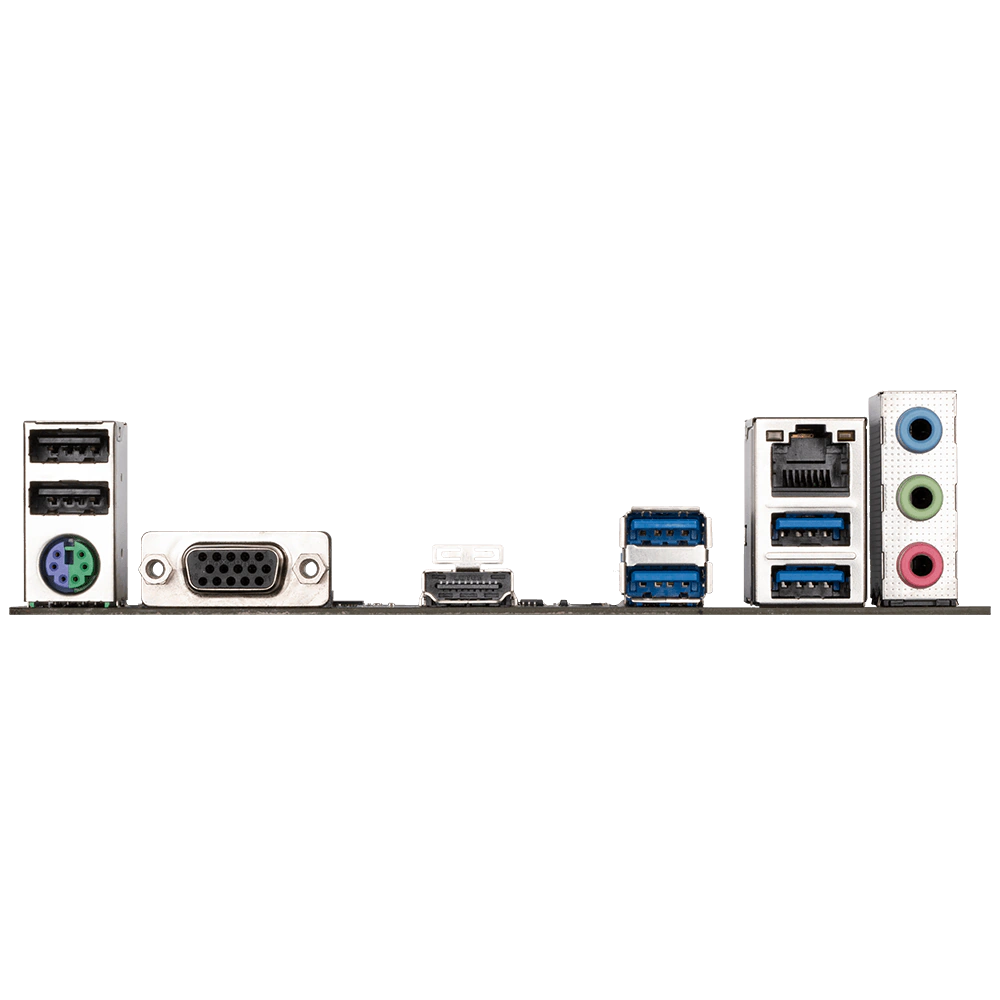

• Conectores del Panel Trasero
• 1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x HDMI port
  4. 4 x USB 3.2 Gen 1 ports
  5. 2 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks

• Controlador de E/S
• 1. iTE® I/O Controller Chip

• Monitorización H/W
• 1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan fail warning
  5. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS
• 1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Características Únicas
• 1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install

• Software Incluido
• 1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software

• Sistema Operativo
• 1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit

• Diseño
• 1. Micro ATX Form Factor; 23.3cm x 19.8cm
